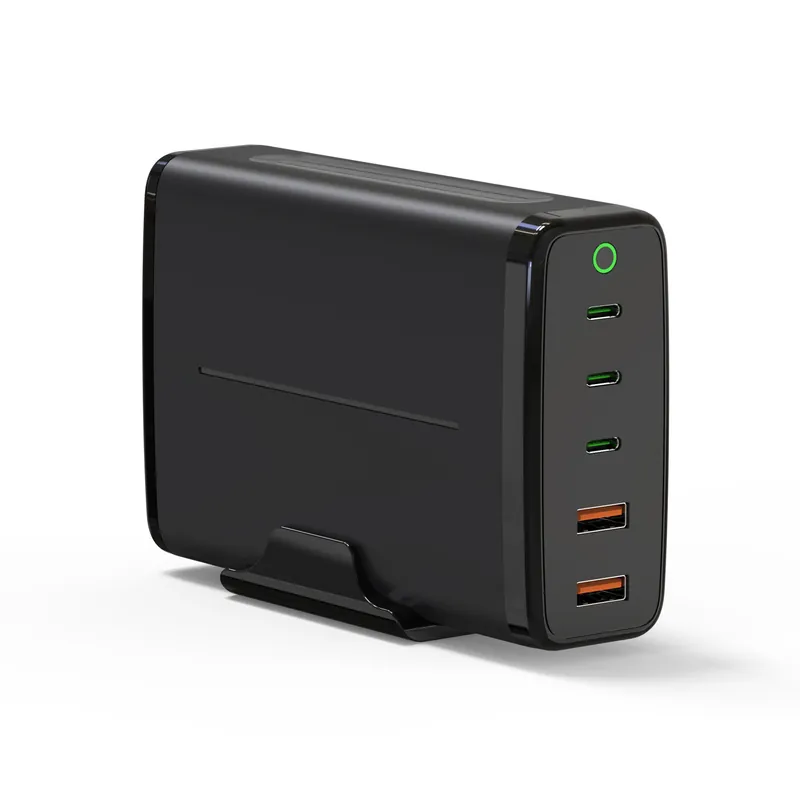

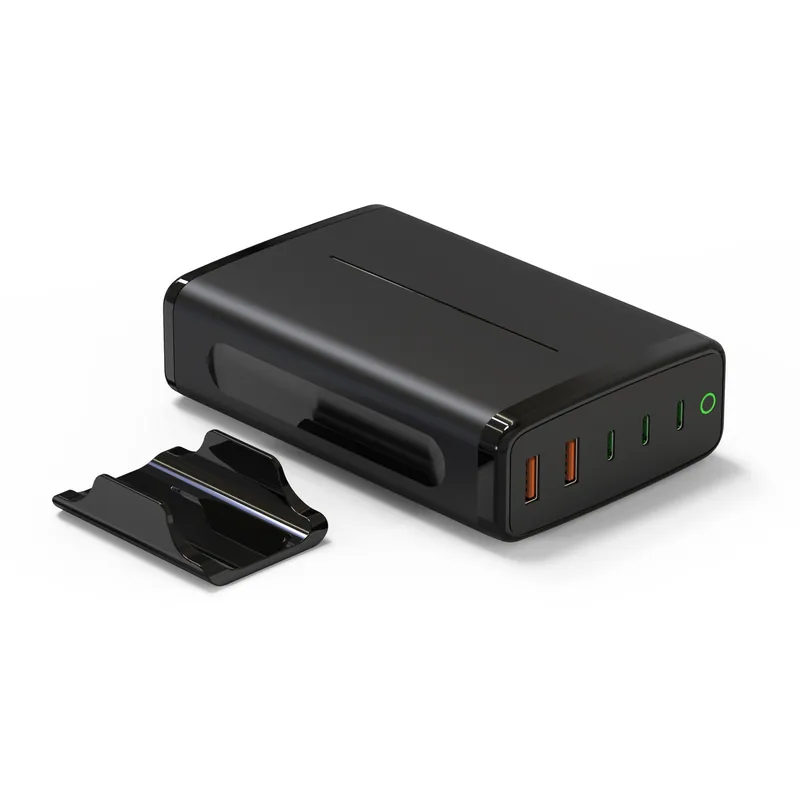

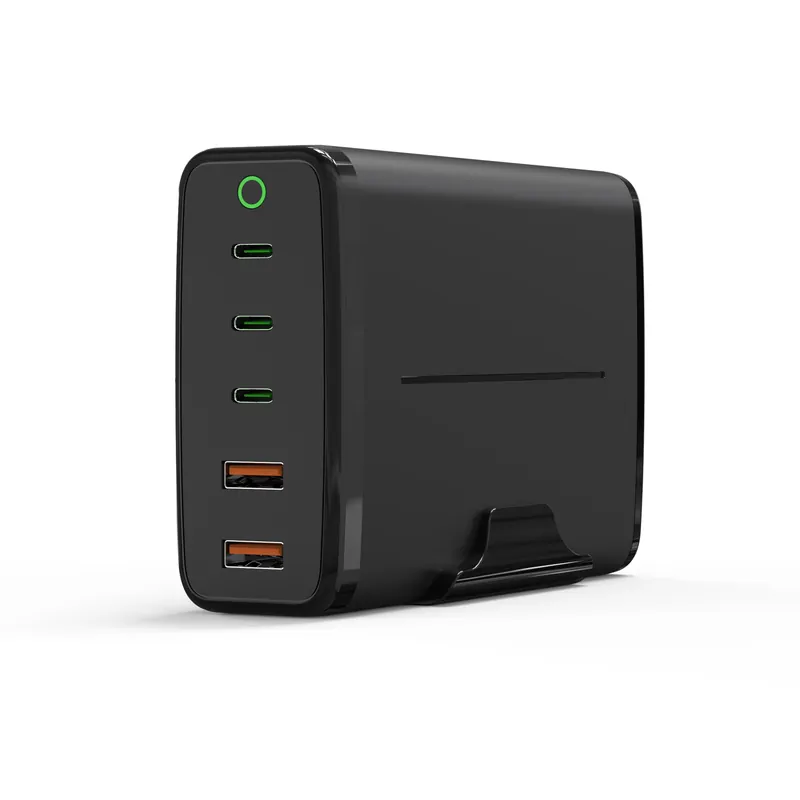

245W 5-Port Desktop Charging Station with 140W PD 3.1 USB-C

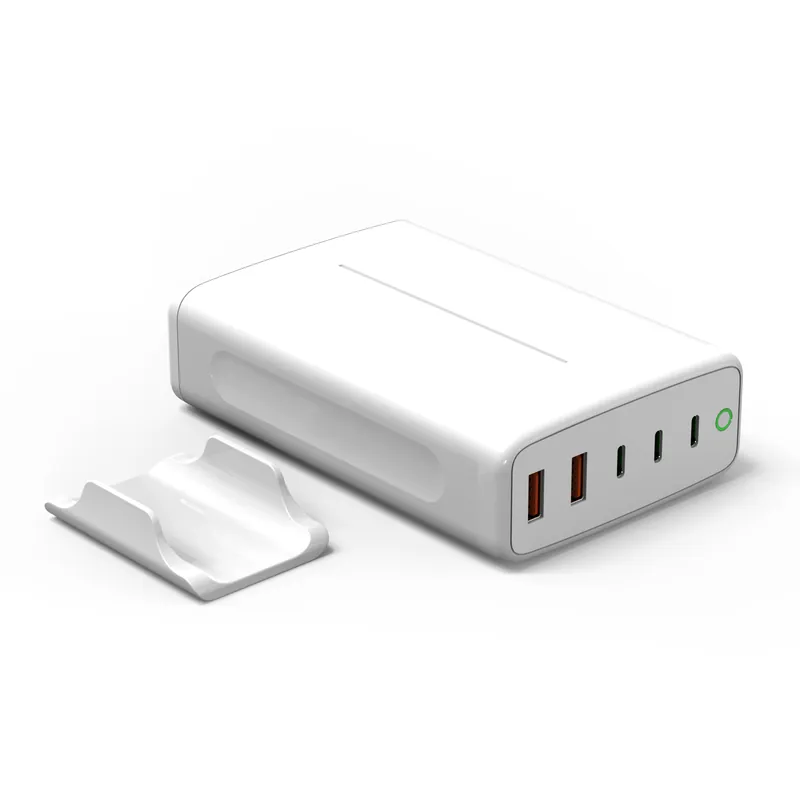

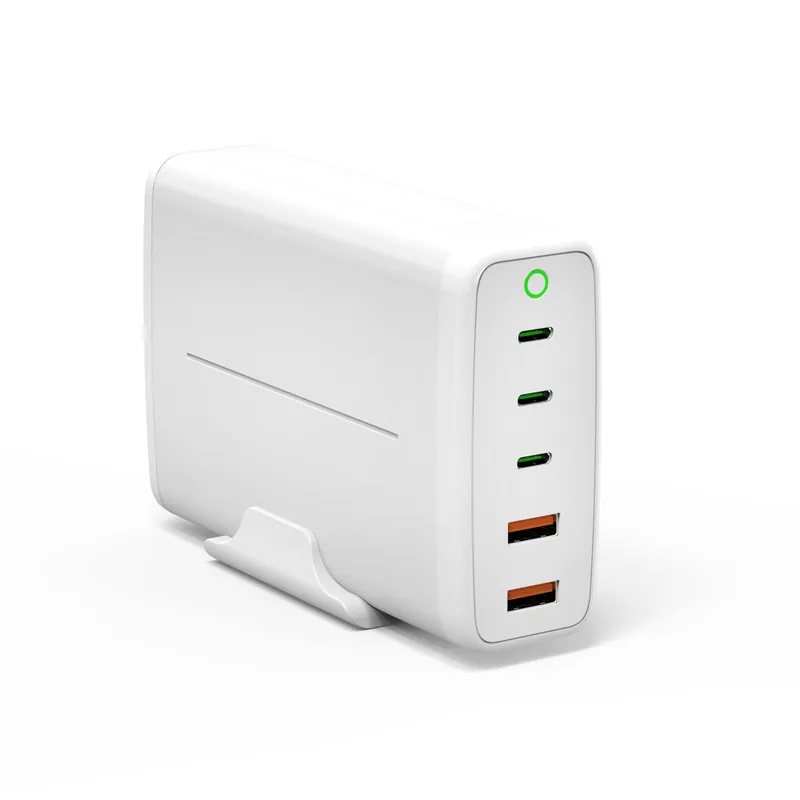

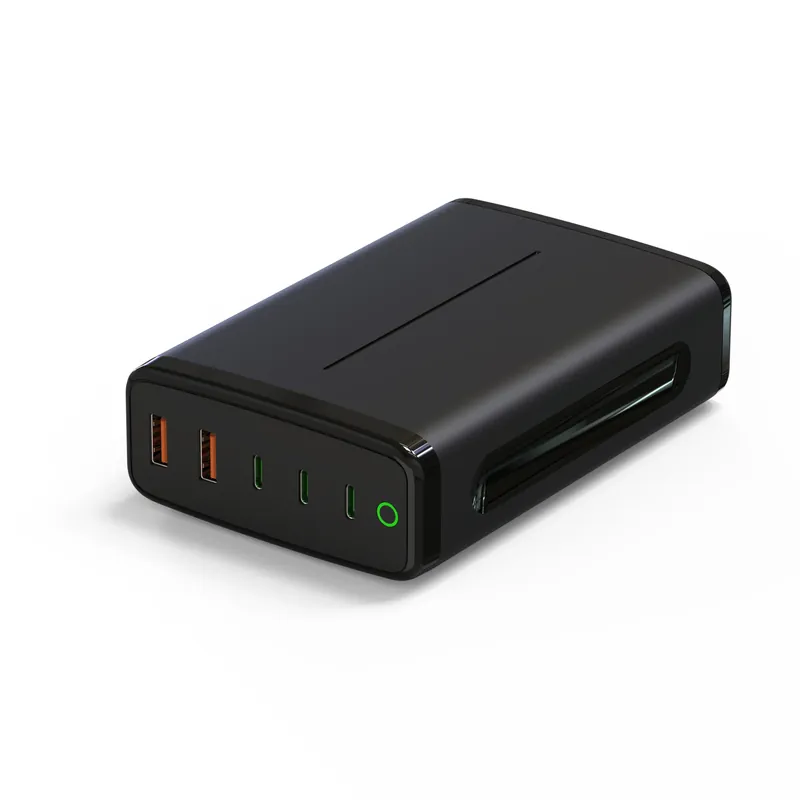

This five-port desktop charging station combines three USB-C ports and two USB-A ports, built to run a large laptop and a second computer side by side. A 140W PD 3.1 port and a 100W PD 3.0 port lead the lineup, with up to 245W of total output.

Model	A2215
Max output	245W
Ports	3× USB-C + 2× USB-A
Product line	Desktop Charging Stations
Technology	PD 3.1

12-month warranty · 30-day returns

MOQ, lead time and wholesale pricing on request. Custom logo and packaging available.

Highlights

140W + 100W Together. On 220–240V input, USB-C1 (PD 3.1, 140W) and USB-C2 (PD 3.0, 100W) can run at full power together.

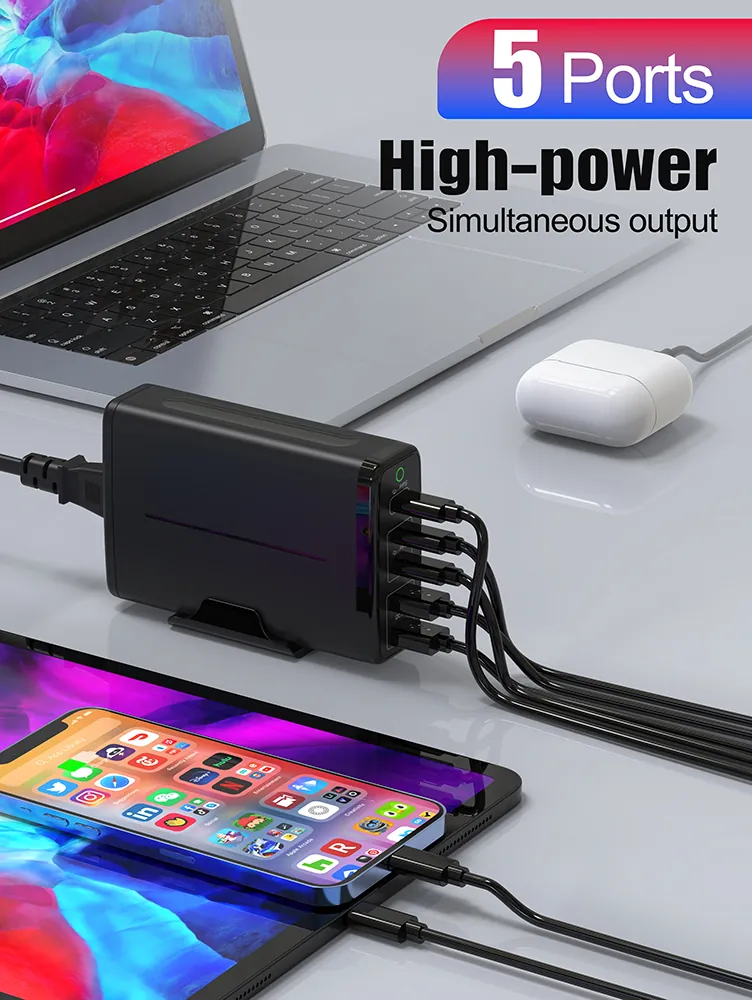

All Five Ports Active. With every port in use on 220–240V input, output splits 140W + 30W + 30W + 22.5W + 22.5W.
Input-Dependent Total. Total output is 245W on 220–240V input and 200W on 100–120V input.
PPS Support. USB-C2 supports PPS from 3.3V to 20V at up to 5A for phones that need programmable charging.
Compact Desktop Size. It measures 123 × 80 × 30 mm and weighs 386 g.

Specifications

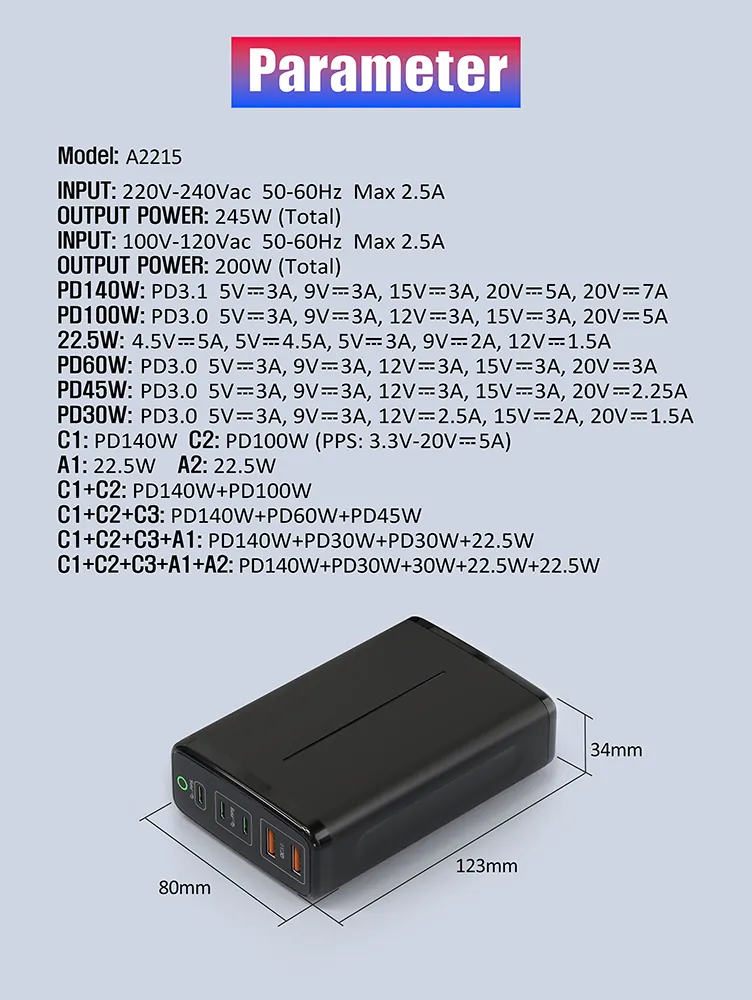

Specification	INPUT: 220V-240Vac 50-60Hz Max 2.5A OUTPUT POWER: 245W (Total) INPUT: 100V-120Vac 50-60Hz Max 2.5A OUTPUT POWER: 200W (Total) PD140W: PD3.1 5V=3A, 9V=3A, 15V=3A, 20V=5A, 20V=7A PD100W: PD3.0 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V= 5A 22.5W: 4.5V-=5A, 5V=4.5A, 5V=3A, 9V=2A, 12V-=1.5A PD60W: PD3.0 5V=3A, 9V=3A, 12V-=3A, 15V=3A, 20V=3A PD45W: PD3.0 5V=3A, 9V=3A, 12V=3A, 15V-=3A, 20V=2.25A PD30W: PD3.0 5V=3A, 9V=3A, 12V=2.5A, 15V=2A, 20V=1.5A C1: PD140W C2: PD100W (PPS: 3.3V-20V=5A) A1: 22.5W A2: 22.5W C1+C2: PD140W+PD100W C1+C2+C3: PD140W+PD60W+ PD45W C1+C2+C3+A1: PD140W+PD30W+PD30W+22.5W C1+C2+C3+A1+A2: PD140W+PD30W+30W+22.5W+22.5W
Power	245W
Size	123mm80mm30mm
Weight	386g
Material	ABS
