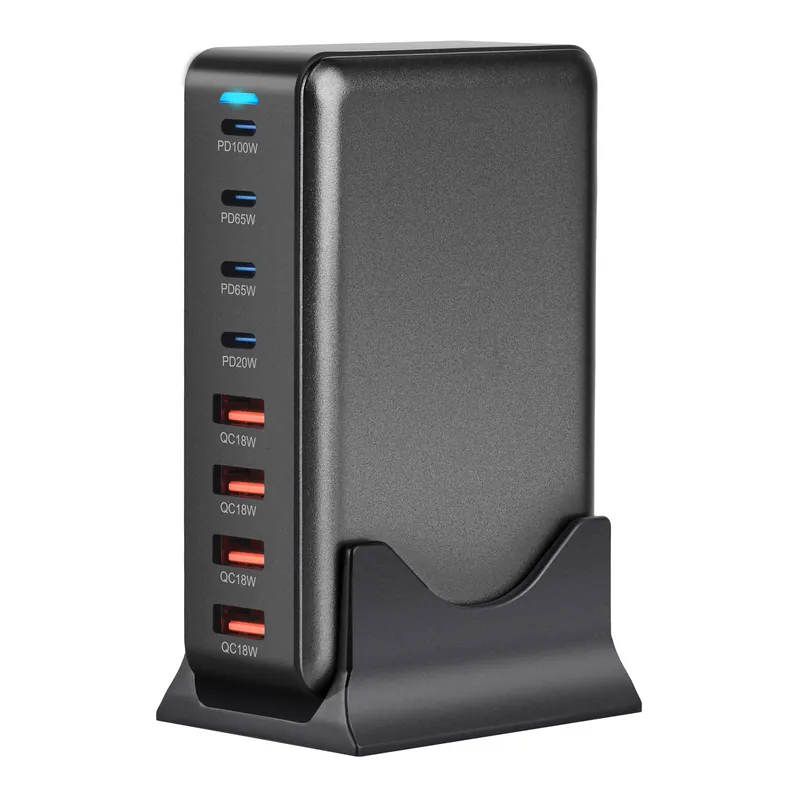

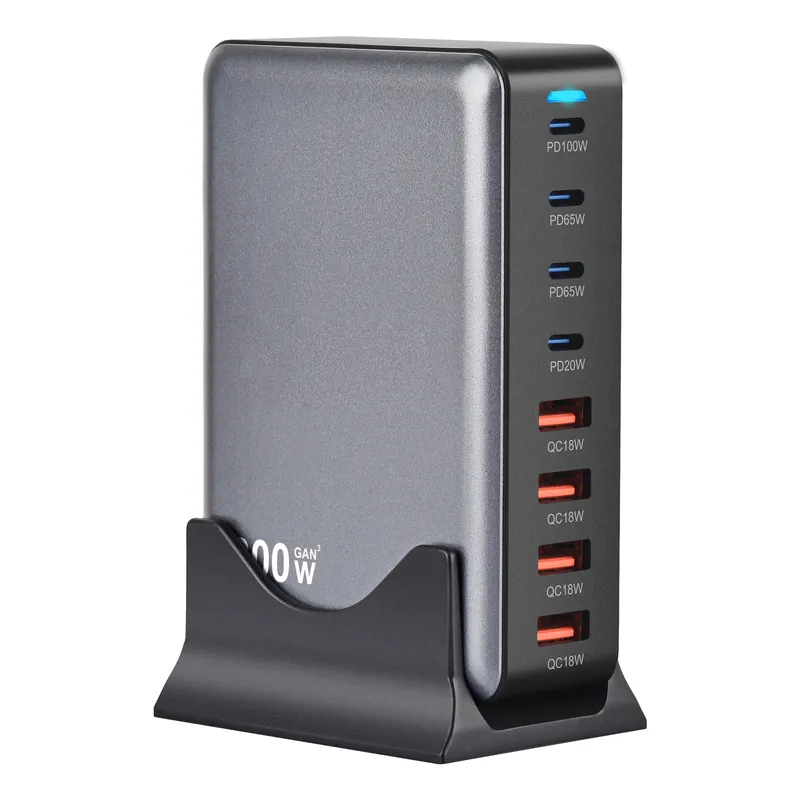

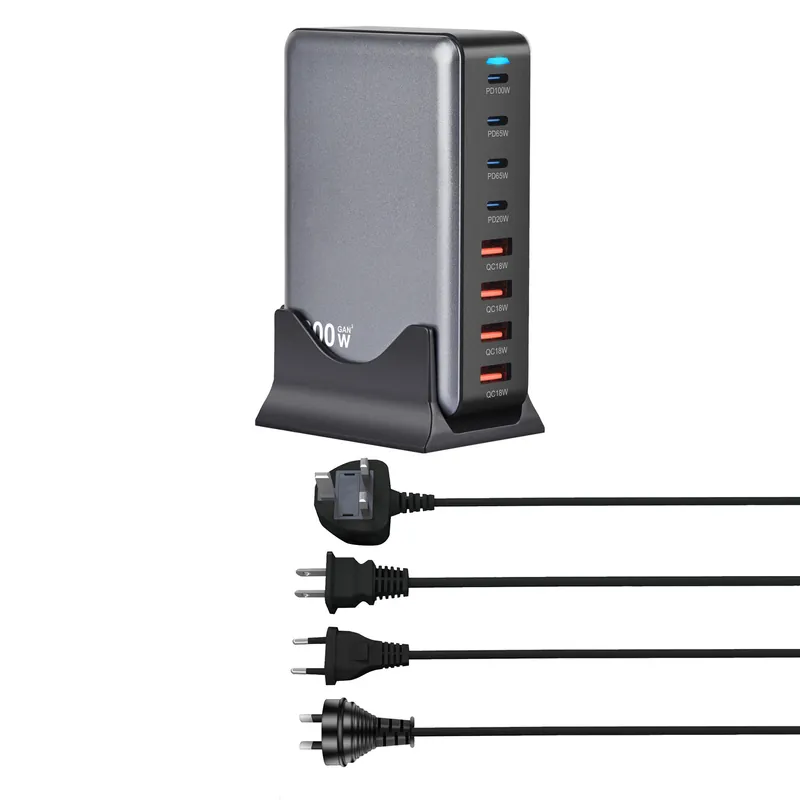

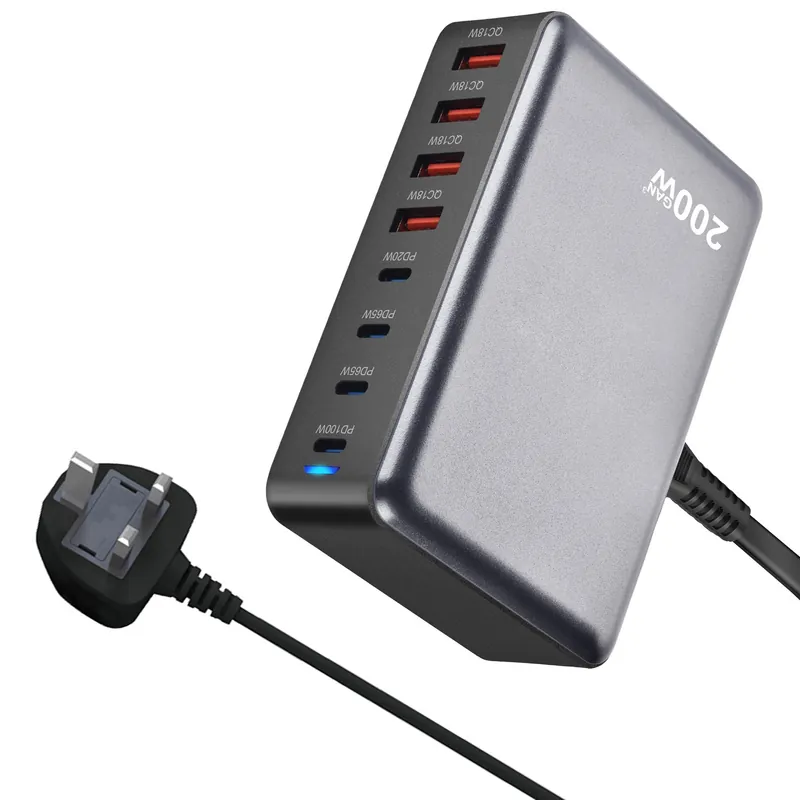

200W 8-Port GaN IV Charging Station, 4× USB-C + 4× USB-A

An 8-port GaN IV charging station with four USB-C and four USB-A ports for laptops, tablets, phones and handheld consoles. A 100W USB-C port handles a laptop on its own, and power is shared automatically as more devices connect, keeping a whole desk charged from one outlet.

Model	HDS-200W-4A4C
Max output	200W
Ports	4× USB-C + 4× USB-A
Product line	Desktop Charging Stations
Technology	GaN

12-month warranty · 30-day returns

MOQ, lead time and wholesale pricing on request. Custom logo and packaging available.

Highlights

100W Laptop Port. USB-C1 delivers up to 100W (20V/5A), while USB-C2 and USB-C3 reach 65W each and USB-C4 20W.
Eight Ports in One. Four USB-C and four USB-A ports charge up to eight devices at the same time.
Smart Power Sharing. Output is allocated as devices connect; USB-C1 plus a USB-A port, for example, provides 100W + 18W.
PD and QC 4.0 Support. USB-C Power Delivery and QC 4.0 fast charging are supported, with up to 18W from each USB-A port.

Specifications

Electrical

Input:AC 100-240V,50/60Hz,1.8A(Max)
Output:USB-C1:5V3A/9V3A/12V3A/15V3A/20V5A 100W(Max)
Output:USB-C2/C3:5V3A/9V3A/12V3A/15V3A/20V3.25A 65W(Max)
Output:USB-C4:5V3A/9V2.22A/12V1.67A 20W(Max)
Output:USB-A1/USB-A2/USB-A3/USB-A4:5V3A/9V2A/12V1.5A 18W(Max)
Output:USB-C1+USB-C2/C3:65W+30W 95W(Max)
Output:USB-C1+USB-C2+USB-C3+USB-C4:65W+30W+30W+20W 145W(Max)
Output:USB-C1+USB-A1/USB-A2/USB-A3/USB-A4:100W+18w 118W(Max)
Output:USB-C2/USB-C3+USB-C4:65W+20W 85W(Max)
Output:USB-C4+USB-A1/USB-A2/USB-A3/USB-A4:5V3A 15w(Max)
Output:USB-C1+USB-C2+USB-C3+USB-C4+ USB-A1+USB-A2+USB-A3+USB-A4: 65w+30w+30w+15w
