245W 3-Port GaN Desktop Charger, 2× USB-C + 1× USB-A

Two high-power USB-C ports and one USB-A port give this 245W GaN desktop charger laptop-class output in a 120 × 75 × 33 mm body. USB-C1 reaches 140W for large laptops, and the charger is available with US, UK, EU and AU plugs.

Model	A2017
Max output	245W
Ports	2× USB-C + 1× USB-A
Product line	Desktop Charging Stations
Technology	GaN

12-month warranty · 30-day returns

MOQ, lead time and wholesale pricing on request. Custom logo and packaging available.

Highlights

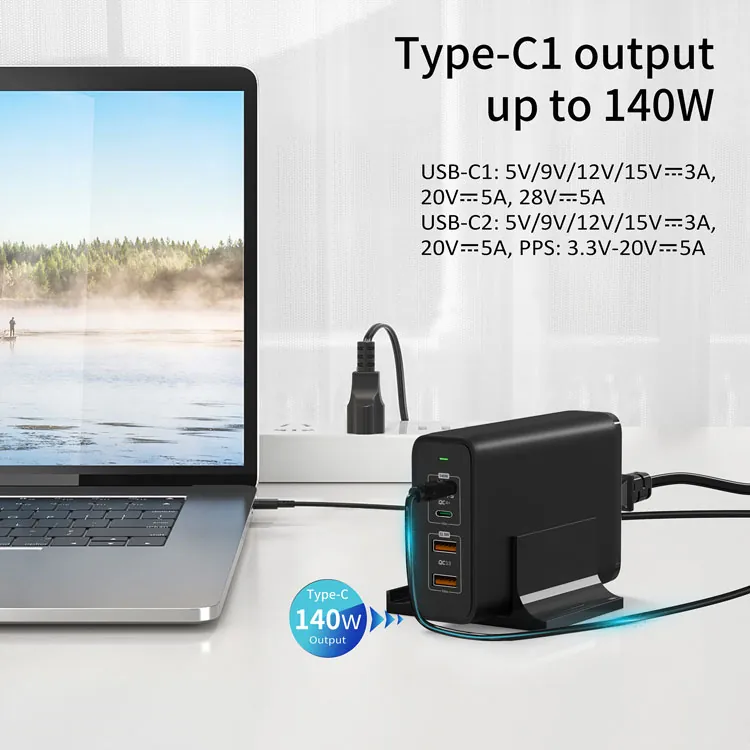

140W and 100W USB-C. USB-C1 supports up to 28V/5A (140W) and USB-C2 up to 20V/5A (100W), both with PPS.
22.5W USB-A Port. The USB-A port supplies up to 22.5W (4.5V/5A or 5V/4.5A) for phones and accessories.
Solid, Compact Build. It weighs 389 g and uses a fire-resistant ABS+PC housing.

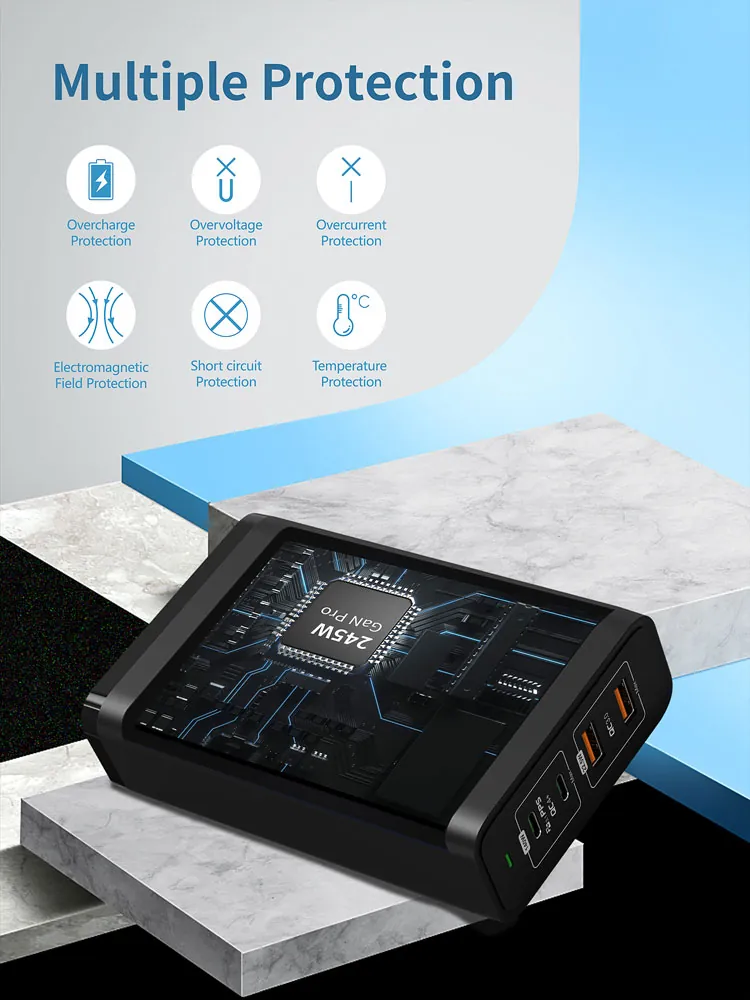

Four-Way Protection. Over-current, over-voltage, over-temperature and short-circuit protection are built in.
Wide Input Range. Accepts 100–240V AC at 50–60Hz.

Specifications

Input	100-240V~ 2.5A 50-60Hz
Output	USB-C1: 3.3V-20V/5A, 5V/9V/12V/15V/3A, 20V/5A,28V/5A USB-C2: 3.3V-20V/5A, 5V/9V/12V/15V/3A, 20V/5A USB-A: 4.5V/5A, 5V/4.5A, 3.6V-6V/3A, 6V-9V~2A,9V-12V/1.5A
Power	245w
Plug	US UK EU AU
Size	120x75x33mm
Weight	389g
Material	ABS+PC Fireproof Material
Protection	OCP OVP OTP SCP
