Phone & Tablet Chargers · Mini Series

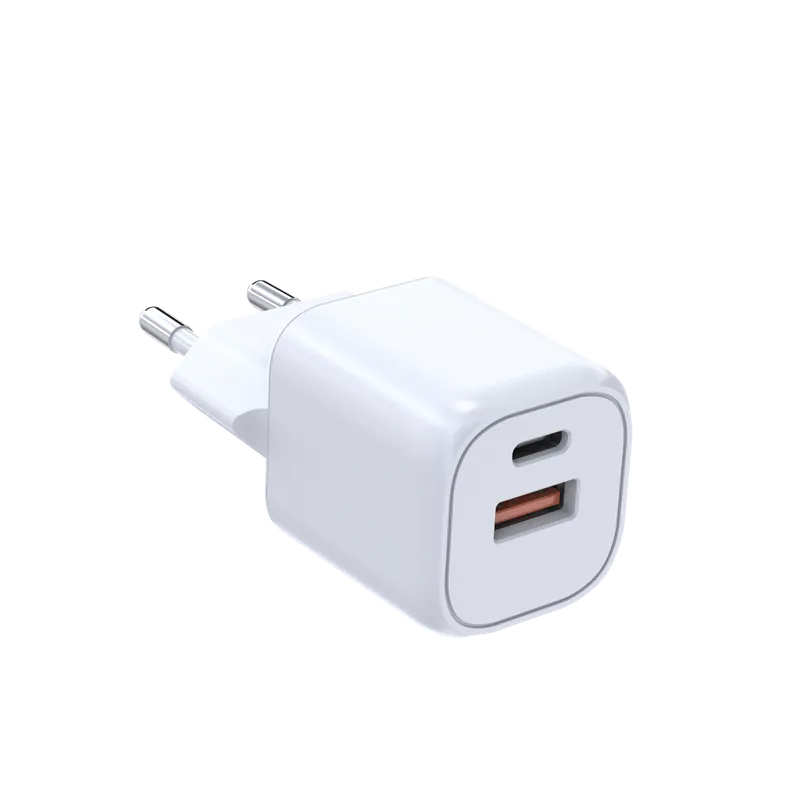

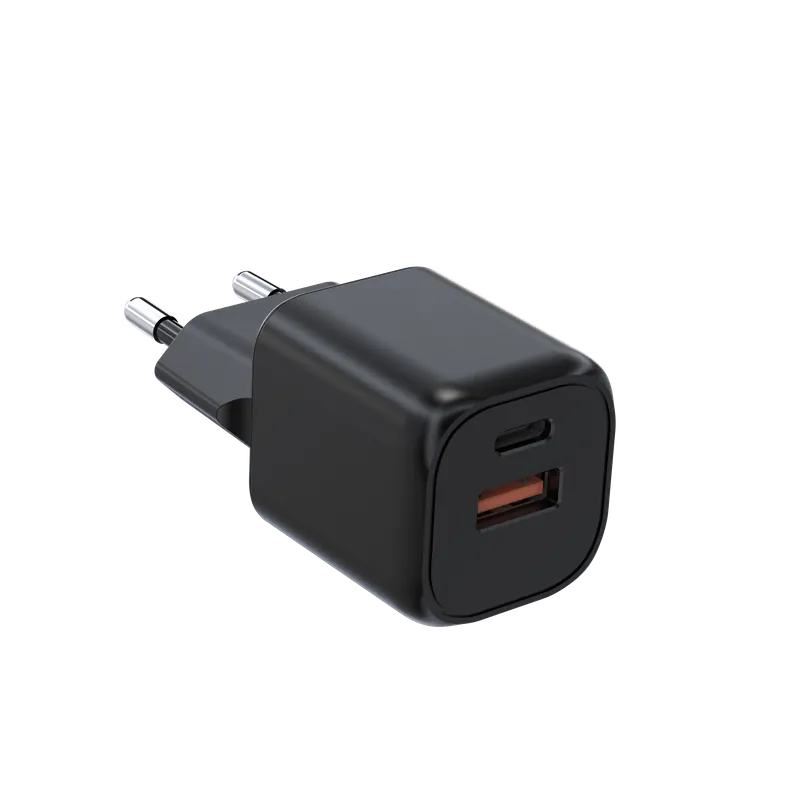

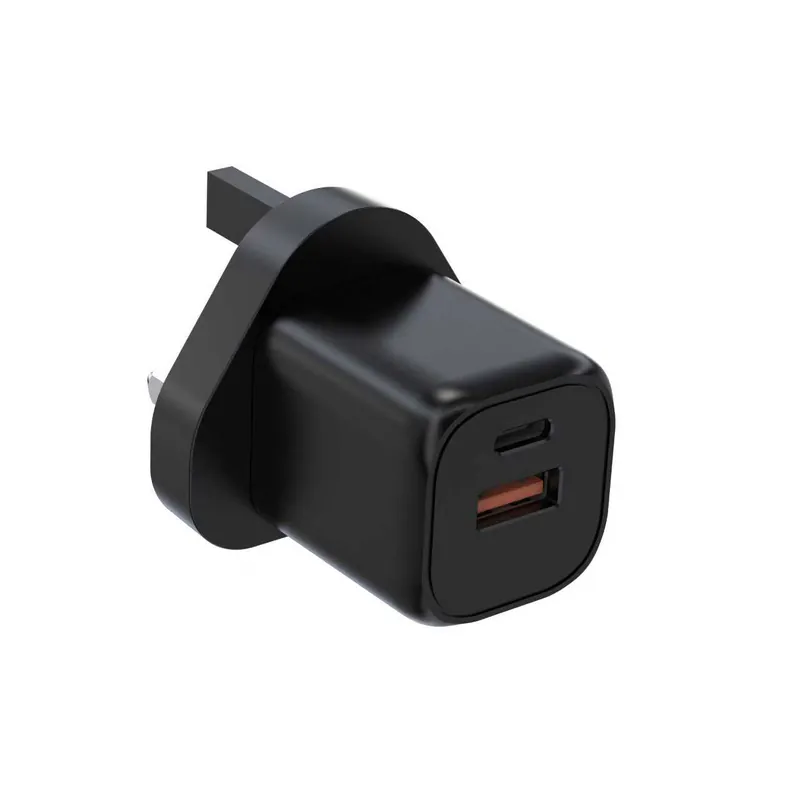

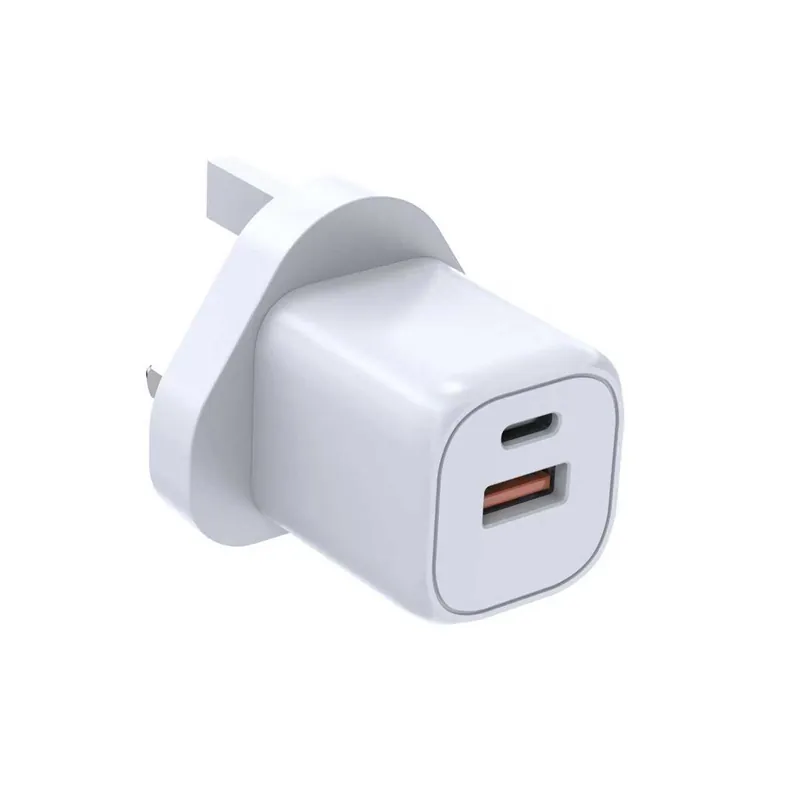

20W Mini GaN Charger, USB-C + USB-A
This Mini Series GaN charger adds a USB-A port alongside 20W USB-C Power Delivery, so newer and older cables both have a place to plug in. Measuring 40 × 32 × 33 mm, it is sized for everyday phone charging at home, at work or on the road.
| Model | HDS-X142 |
|---|---|
| Max output | 20W |
| Ports | 1× USB-C + 1× USB-A |
| Product line | Phone & Tablet Chargers |
| Series | Mini Series |
| Technology | GaN |
MOQ, lead time and wholesale pricing on request. Custom logo and packaging available.
Highlights
- 20W USB-C PD. The USB-C port delivers up to 20W via Power Delivery at 5V, 9V or 12V.
- 18W USB-A Port. Used on its own, the USB-A port provides up to 18W for devices with USB-A cables.
- Shared Dual Charging. With both ports in use, the charger supplies a combined 15W at 5V/3A.
- Compact GaN Build. A GaN design in a 40 × 32 × 33 mm housing made of UL94 V0 fire-resistant PC.
- CE and CB Certified. Certified to CE and CB, supplied with an EU plug in a choice of white or black.
Specifications
Electrical
- Input: 100-240V~ 50/60Hz 0.5A Max
- Output(USB-C): 5.0V⎓3.0A(15.0W) or 9.0V⎓2.22A(20.0W) or 12.0V⎓1.67A(20.0W)
- (USB-A): 5.0V⎓3.0A(15.0W) or 9.0V⎓2.0A(18.0W) or 12.0V⎓1.5A(18.0W)
- (USB-C+USB-A): 5.0V⎓3.0A(15.0W)
- Total Power: 20W Max
- Size:40*32*33mm
- Available Plug:EU
- USB Port:1 TYPE C +1USB A
- Certification :CE,CB
- Colour:White,Black
- Material:PC fireproof UL94 V0
