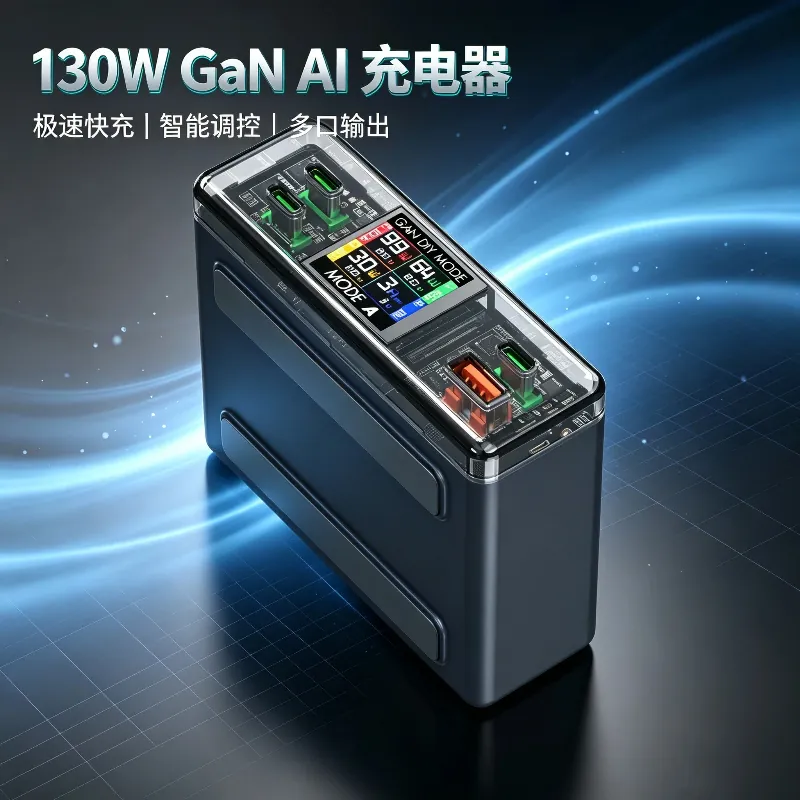

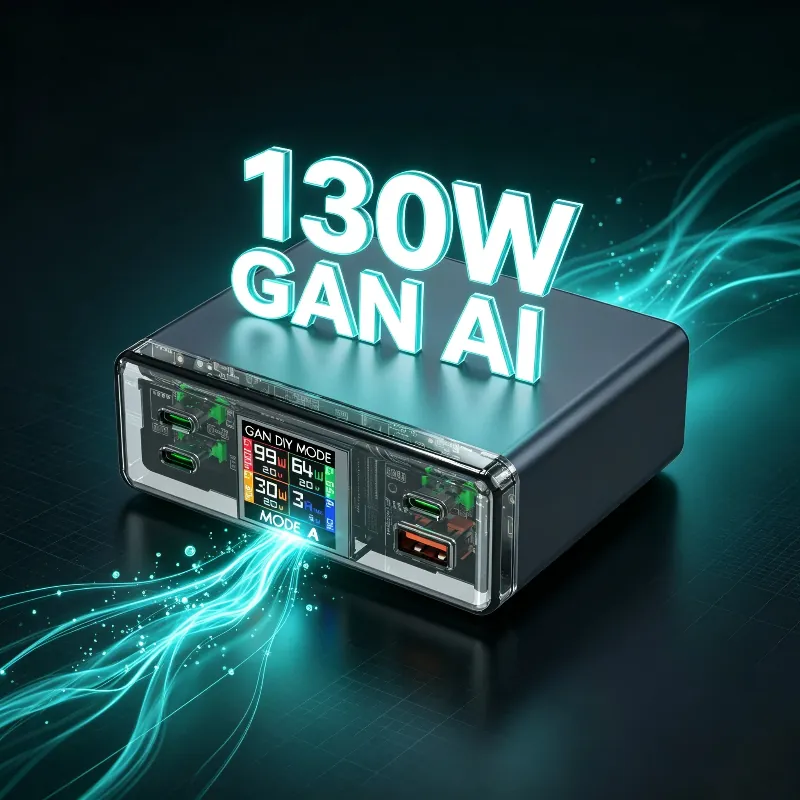

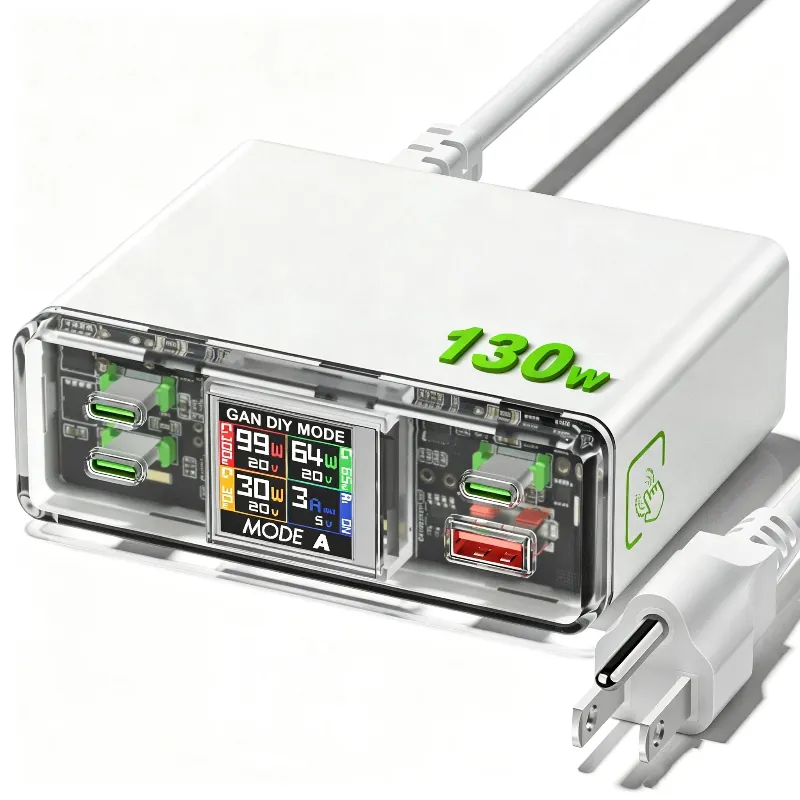

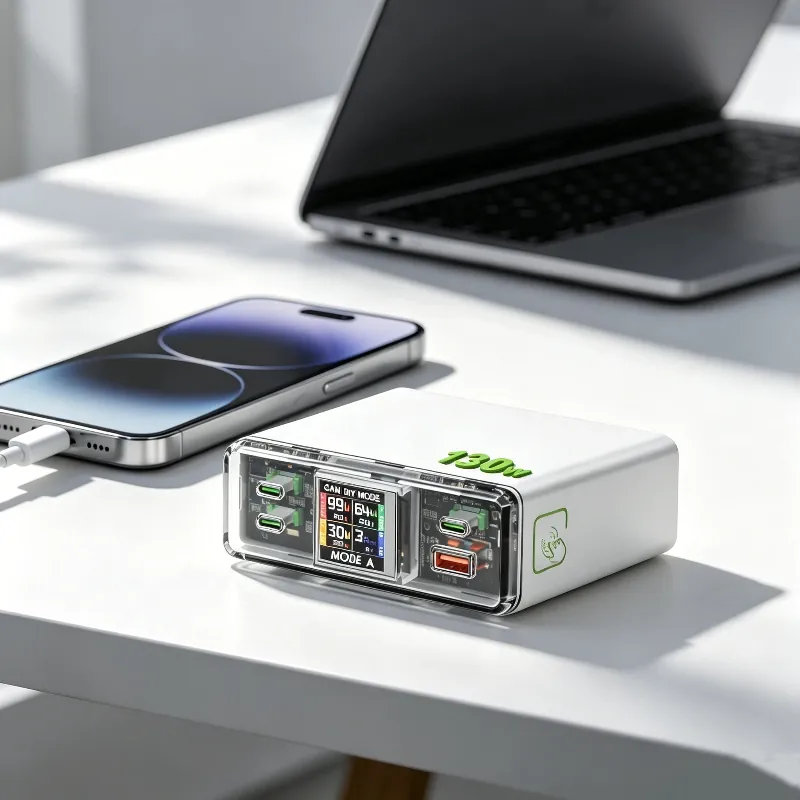

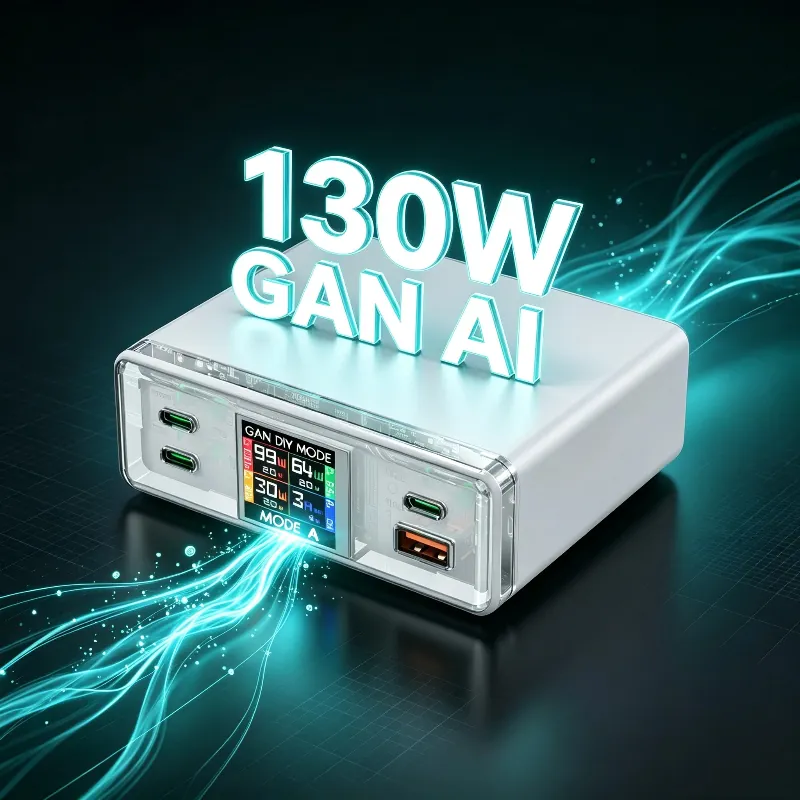

130W 4-Port GaN Charger with AI Smart TFT Touch Display
Three USB-C ports, one USB-A port and an AI smart TFT display with touch control come together in this 130W GaN charger. It can feed a laptop up to 100W while topping up a phone and accessories, and three power modes let users choose how output is shared.
| Model | A2316-130 |
|---|---|
| Max output | 130W |
| Ports | 3× USB-C + 1× USB-A |
| Product line | Smart Display Chargers |
| Technology | GaN, Display |
MOQ, lead time and wholesale pricing on request. Custom logo and packaging available.
Highlights
- Up to 100W for Laptops. USB-C1 supplies up to 100W (20V/5A) and USB-C2 up to 60W, with USB-C3 at 20W and USB-A at 10W.
- Three Power Modes. Run all four ports at 65W + 30W + 20W + 10W, or split 60W + 60W + 10W or 100W + 20W + 10W across three.
- AI Smart TFT Display. A TFT screen with touch control provides at-a-glance status and simple, hands-on operation.
- PPS Fast Charging. USB-C1 and USB-C2 support PPS from 3.3V to 20V for phones that use programmable power.
Specifications
Electrical
- Total Output: 130W GaN (3C1A)
- Model: A2316-6
- Total power: 130W
- Input:100V-240V~50-60Hz 1.5A
- USB-C1: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W max.)
- PPS: 3.3-20V/5A(C1)
- USB-C2: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W max.)
- PPS: 3.3-20V/3A(C2)
- USB-C3: DC 5V/3A, 9V/2.22A,12V/1.67A (20W max.)
- USB-A: DC 5V/2A (10W max.)
- A Mode: USB-C1+C2+C3+A: 65W+30W+20W+10W
- B Mode: USB-C1+C2+A: 60W+60W+10W
- C Mode: USB-C1+C2+A: 100W+20W+10W
